Mechlift Pro™

Professional universal lifter

Electric Mechlift Pro™ is one of Movomech’s original industrial manipulators which we originally developed back in the 1980s. It has subsequently been further developed and refined in close collaboration with operators and installers to optimize operator ergonomics and minimize and simplify maintenance procedures.

Extremely versatile

Mechlift Pro™ is an extremely versatile moment absorbing lifting unit that is easily adapted to many types of handling solutions. It can be fitted with standard or custom gripper tools, as well as with accessories such as rotation units, brake units, programmable stop positions, and much more.

Wide range of applications

Versatility makes Mechlift Pro™ a professional universal lifter with a wide range of applications. Objects typically handled with electric Mechlift Pro™ include panels, carpet rolls, tanks, doors, windows, cable reels, vehicle doors, sunroofs, car seats, windscreens and car bonnets.

Several configurations

Electric Mechlift Pro™ has a modular design and can be supplied in many different configurations. It can also be integrated with Powerdrive™ drive units for powered lateral transportation on rail system, or with a Mechbelt linear unit for automated handling of “pick and place” type.

Moment-absorbing

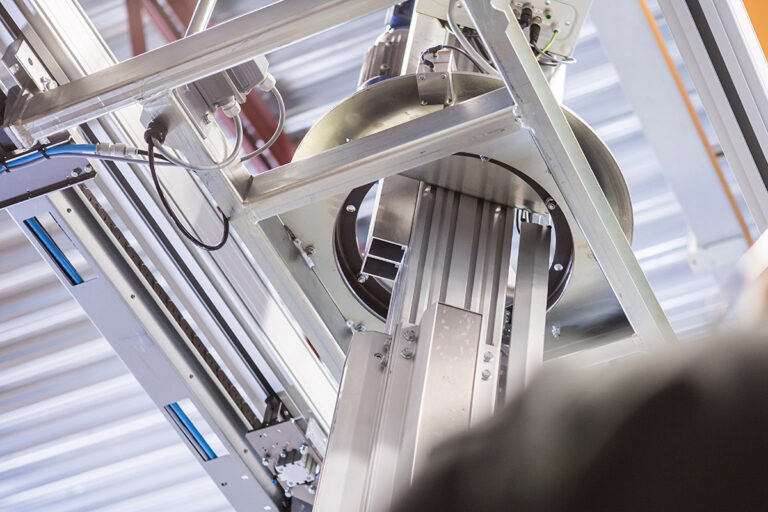

The lifting pillar consists of telescopic aluminium profiles that are anodized and thus completely maintenance-free. The moment-absorbing sliding blocks (400/650 kg models have moment-absorbing wheels) enable loading outside the lifter’s vertical lifting axis.

Encoder for stop positions

As an option, electric Mechlift Pro™ can be equipped with an encoder that reads the shaft in the spindle limit switch. This makes it possible to set a lower stop position, as well as a further two stop/start positions along the stroke length. The positions are stored in a built-in memory in the frequency converter and are not erased in the event of a power outage.

Product features
  • Swedish lifting technology developed over 30 years
  • Powerful professional industrial manipulator
  • Maintenance-free aluminium
  • Customizable universal lifting manipulator
  • For ergonomic lifting solutions in many industries
  • Wide selection of accessories and configuration options

Do you want to know more?

Are you interested in this product? Fill out the form and we will get in touch with you.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Applications

Do you want to know more?

Are you interested in this type of handling solution? Fill out the form and we will get in touch with you.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Related files
Mechlift Pro™
75
150
150-3
250
250-3
400
650
Max load
kg
75
150
150
250
250
400
650
Min load
kg
5
5
5
5
5
0
0
Max moment
Nm
500
800
500
800
500
1500
1500
Max stroke
mm
1500
1500
2000
1500
2000
1500
1500
Engine output
kW
0.25
0.75
0.75
0.75
0.75
1.5
1.5
Lifting speed
m/min
0 - 12
0 - 10
0 - 10
0 - 10
0 - 10
0 - 10
0 - 10
