Mechcrane™

Wall-mounted jib cranes for ergonomic material handling

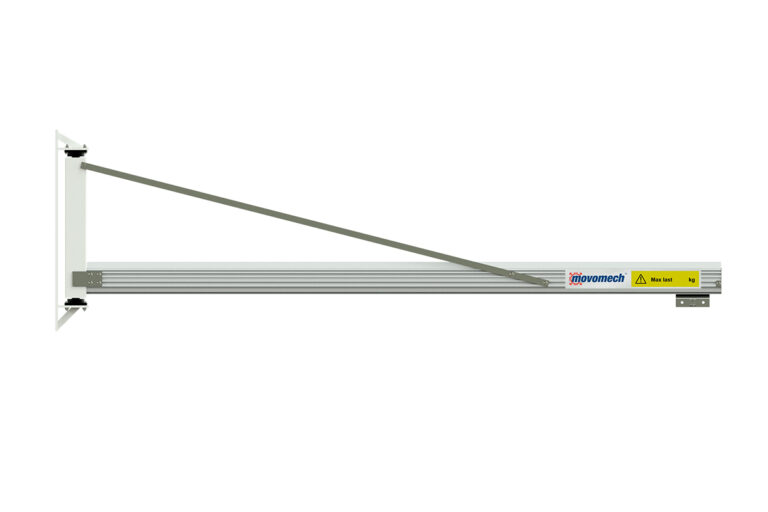

Mechcrane™ wall-mounted jib cranes LVS/AVS are the natural choice for ergonomic material handling where there is limited floor space and work is conducted continuously at the same workstation, such as during assembly work or when lifting to and from processing machinery.

Light and strong aluminium

Movomech’s wall-mounted cranes are made of light and strong aluminium profiles from the Mechrail™ crane system range. The advantages of aluminium profiles and the high-quality bearings in the jib arms are many. The low weight and low friction provide smooth handling and favourable operator ergonomics. What’s more, the crane arms can be equipped with a number of different accessory components, such as cable trolleys, attachments for accessories, and more.

Smooth-running trolley included

The crane arm ie equipped with a sturdy and extremely easy-rolling aluminium trolley, fitted with high-quality wheel bearings for ergonomic material handling that is both quiet and smooth.

Optional length

Mechcrane™ wall-mounted jib cranes LVS/AVS are offered in any length of 0.5 m multiples, as specified below.

Moreover, custom lengths can be made to request. Contact Movomech for more information.

Do you want to know more?

Are you interested in this product? Fill out the form and we will get in touch with you.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Applications

Do you want to know more?

Are you interested in this type of handling solution? Fill out the form and we will get in touch with you.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Related files
VERSION
LVS
LVS
LVS
AVS1
AVS1
AVS2
AVS2
Profile
LHB
LHB
LHB
AHB1.1
AHB1.1
AHB2
AHB2
Max load
kg
30 / 40
50 / 63
110
125
150
200
250
Max reach
m
6 / 5.5
5 / 4.5
4
5
4
5
4
Max reach
°
240
240
240
240
240
240
240
