Mobiarm - Mobile articulated jib crane

Flexible mobile jib crane for all types of lifting

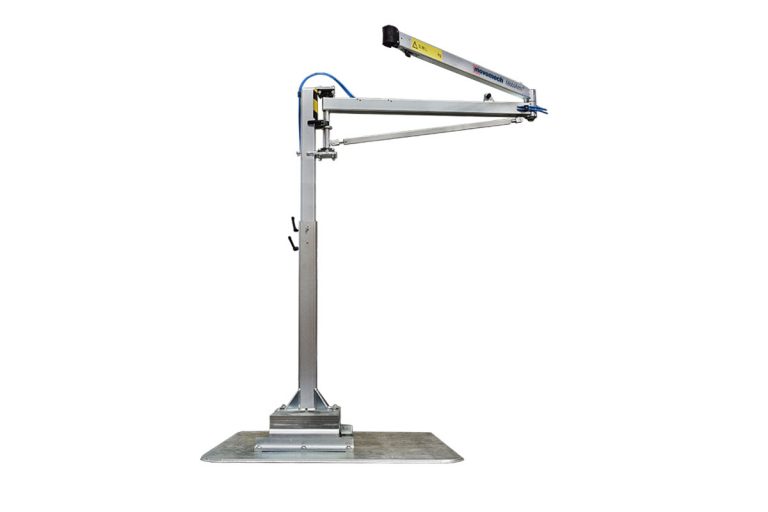

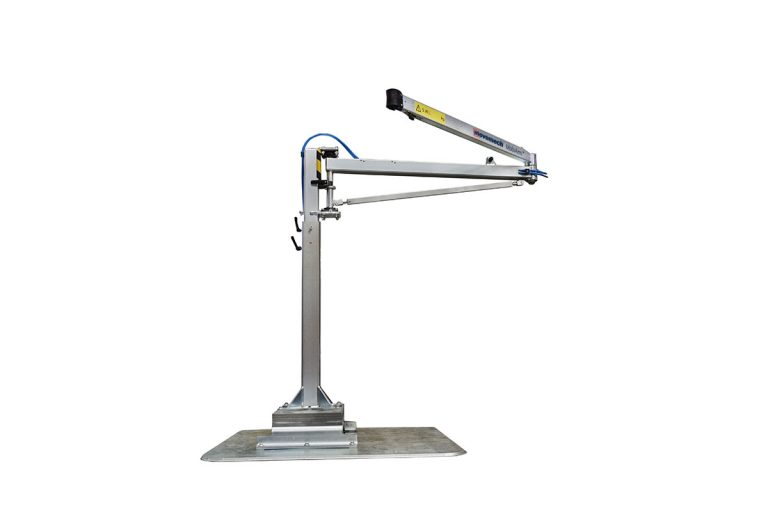

Mobiarm is an ergonomic articulated jib crane that can be adapted to each individual workplace, with a reach of up to 4 meters, and a height-adjustable floor pillar.

With or without a mobile platform

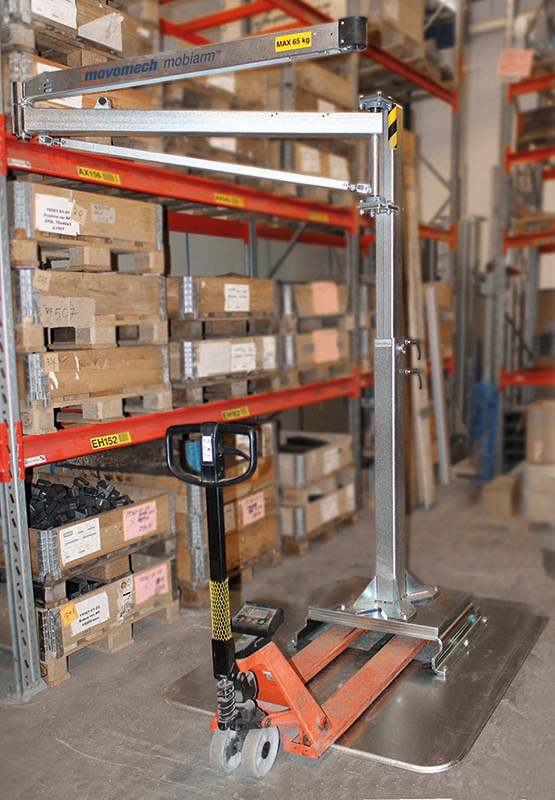

The flexible design of Mobiarm is combined with the lifting device of your choice. Add a mobile platform and you can easily move Mobiarm between different workstations – a simple manual pallet truck will suffice!

Several versions

Mobiarm can be supplied in a variety of designs and installed in several different ways:

  • on a mobile platform
  • directly on the floor
  • on a wall
  • on a pillar with a fixed tower

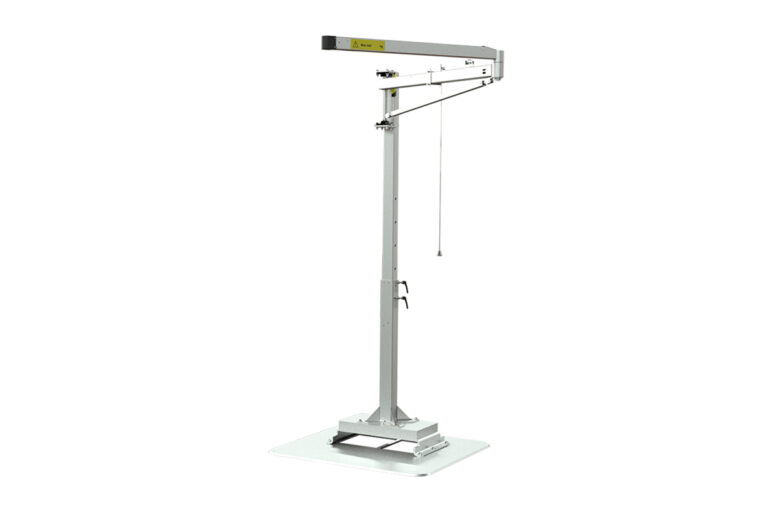

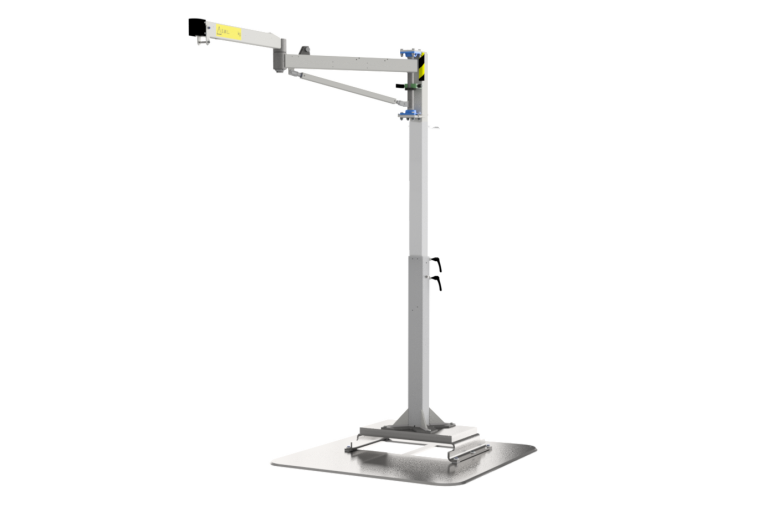

  • on a pillar with an adjustable tower

Smooth and adjustable

Mobiarm is equipped with an articulated jib arm with lengths between 2 and 4 metres. The arm rotation uses low-friction bearings making it very smooth and easy to use. The adjustable tower can easily be adjusted to the desired height, which is an advantage at workstations where the equipment needs to be adapted to different handling operations.

Options

Standard kits for electric or pneumatic media supply, as well as a drift/parking brake, are available as options.

NEWS – The lower part of the tower is black.

Applications

Do you want to know more?

Are you interested in this type of handling solution? Fill out the form and we will get in touch with you.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Related files
VERSION
2000
2500
3000
3500
4000
Max load
kg
125
90
80
65
50
Arm length
mm
2000
2500
3000
3500
4000
