Mobichain™

Mobile solution with frequency-controlled lifting unit

Mobichain™

Mobile solution with frequency-controlled lifting unit

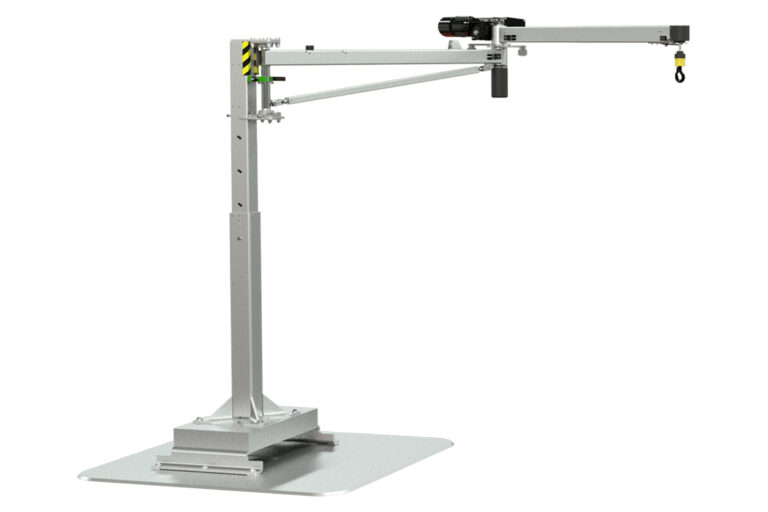

Mobichain™ – Is a unique product that combines the mobile articulated jib crane smoothness with fast, precise and stepless lifting movements via an integrated Mechchain Pro.

Height-adjustable floor pillar, mobile or fixed mounting, reach of up to 4 meters and a lifting capacity up to 100 kg is Mobichain a exceptional product for ergonomic and sustainable handling.

Ergonomics in focus
Mobichain combines function and ergonomics in a modern product design suited for the futures demands and needs. The lifting and lowering movements are controlled via a joystick that can be free-haning or integrated in a gripper.

With or whitout a mobile footplate
Mobichain is the perfect solution if you want to use the articulated jib crane on different workingstations. This is possible if you choose a mobile footplate as a option, the only thing that this requires is that you have a manual pallet truck.

PRODUCT FEATURES
  • Mobile solution with frequency-controlled lifting unit for smooth stepless lift- and lower movements
  • High precision in combination with high lifting speed
  • Control via joystick
  • Compact, low construction height and silent working
  • Easy to move with manual pallet truck
  • Lifting capacity up to 100 kg
  • Smooth and ergonomic lifting

Do you want to know more?

Are you interested in this product? Fill out the form and we will get in touch with you.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Related files
Technical information
Max load
kg
100
Max jib arm range
m
4
Max pillar length
m
1,7-3,2
Stroke
m
3,3
Voltage
V
1x230V, N, PE
