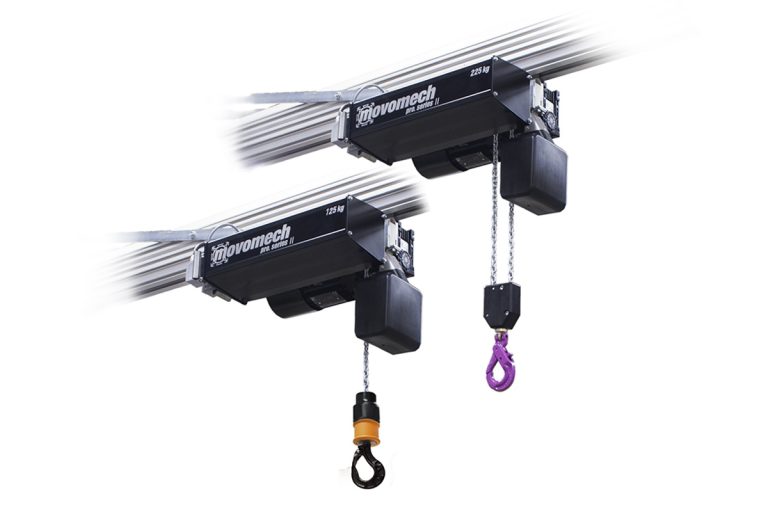

Mechchain Pro II™

Mechchain Pro II™

Professional frequency-controlled chain hoist

Mechchain Pro II™ is a very easy-to-use and ergonomic lifting device for professional lifting that joined Movomech’s range back in 1995 and has been continually developed and refined ever since.

Smooth and precise lifting motion

Its main strength is the combination of good control and high precision. In addition to this, the lifter has an impressive lifting speed of up to 16 m/min. Frequency control provides a continuously variable lifting speed controlled by the joystick.

Low installation height – high availability

This lifting unit is suitable when well-controlled and precise movement is required. Integrated with its trolley, it has the lowest headroom requirement on the market, enabling installation even in confined workspaces.

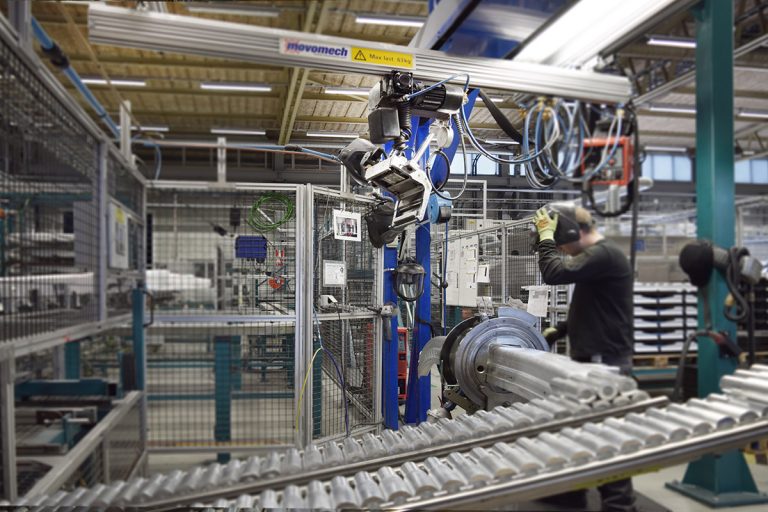

Optimal for assembly processes

Mechchain Pro II™ is available in a range of weight classes up to 225 kg, and its typical application areas include:

• Material handling with custom gripper tools
• High-precision assembly work
• General lifting with slings or hooks
• Lifting within general industry
• Packing onto pallets and roller conveyers

Integrated PLC & optional remote control

Mechchain Pro II™ has an integrated PLC which simplifies the use of custom features. A remote control option is also available for applications in which this better facilitates handling.

Encoder for stop positions

Mechchain Pro II™ can also be equipped with an optional encoder that reads the axle in the spindle limit switch. This enables you to set both the lower stop position and two additional stop/start positions along the stroke. The positions are stored in built-in memory in the frequency converter and are not lost in the event of a power outage.

Control units in aluminium

For high availability even in challenging environments, Mechchain Pro II™ has been equipped with a control unit in aluminium with a quick connector for the control cable. A selection of optional standard control unit brackets is also available for easy installation on gripper tools or vacuum yokes.

Product features

• For professional lifting
• Lifting movement with very high precision
• Continuously variable lifting speed of up to 16 m/min
• Programmable
• Optional remote control
• Minimum build height
• Control unit in sturdy aluminium
